Specification

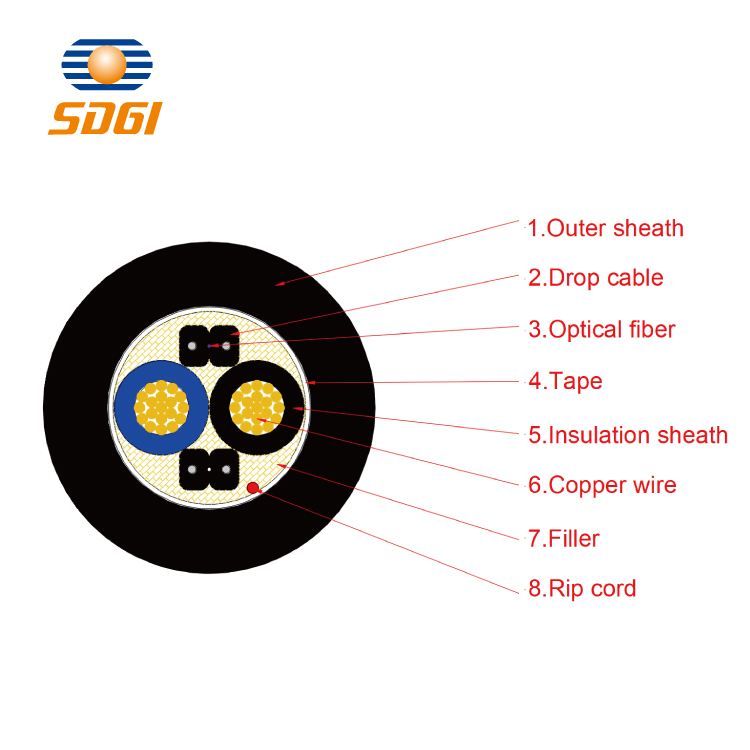

The optical unit of the photoelectric hybrid cable for wireless communication small base stations is a FTTH drop cable, the DC power supply unit is a copper conductor, the outside is a tape and filling material, and the sheath material is environmentally friendly, low-smoke, halogen-free and flame-retardant polyolefin (LSZH) Or polyvinyl chloride (PVC).
application
• Mainly used for indoor wireless small cell communication and power supply.
Parameters
| Cable diameter (mm) | Cable weight (kg/km) | Minimum bending radius (mm) | Tensile load(N) | Crush load(N/100mm) | Temperature range（℃） | |||
| static | dynamic | Short term | Long term | Short term | Long term | |||
| 9.0±0.3 | 105 | 140 | 280 | 600 | 300 | 1000 | 500 | - 20℃ - +80℃ |
| 9.0±0.3 | 105 | 140 | 280 | 600 | 300 | 1000 | 500 | - 20℃ - +80℃ |
| 10.2±0.5 | 140 | 160 | 280 | 600 | 300 | 1000 | 500 | - 20℃ - +80℃ |
| 10.2±0.5 | 140 | 160 | 280 | 600 | 300 | 1000 | 500 | - 20℃ - +80℃ |
Pictures
Photoelectric Hybrid Cable For Wireless Communication Small Base Station
