Fiber Optic Splitter

The Planar lightwave circuit splitter (PLC Splitter) is a state-of-the-art integrated lightwave optical power distribution device built on a quartz substrate. One of its key attributes is the minimal splitter loss in optical fiber, ensuring efficient signal distribution with low optical splitter loss. This device boasts a plethora of features, including a compact structural design, a wide operating wavelength range, high reliability, low insertion loss, and low polarization dependent loss, coupled with excellent channel uniformity. These characteristics make it particularly suitable for the connection between central offices and terminal equipment in Passive Optical Networks (BPON, EPON, GPON, etc.), facilitating the effective and loss-minimized distribution of optical signals.
留言 在线咨询
Details

Specification

Planar lightwave circuit splitter(PLC Splitter) is an integrated lightwave optical power distribution device based on a quartz substrate.The optical splitter loss is low. It has many characteristics, such as compact structure design, wide operating wavelength range, high reliability, low insertion loss, low polarization dependant loss and good channel uniformity and so on. It is especially suitable for the connection between the central office and terminal equipment in the Passive Network (BPON, EPON,GPON, etc.), and can achieve the distribution of optical signals.

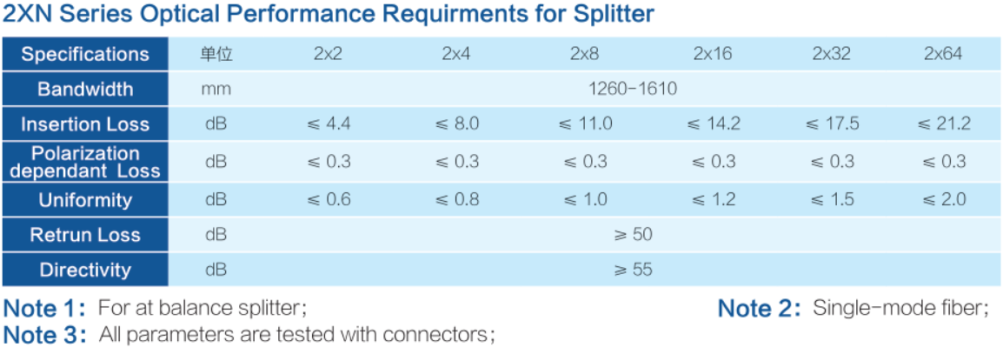

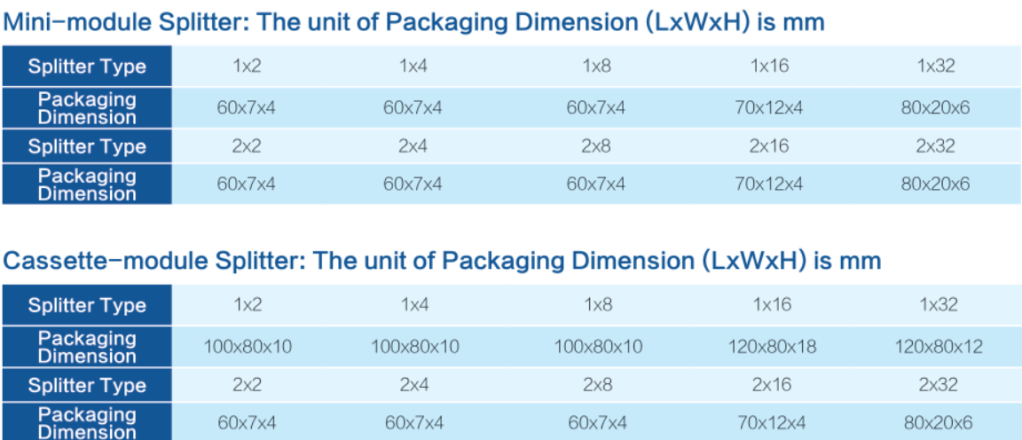

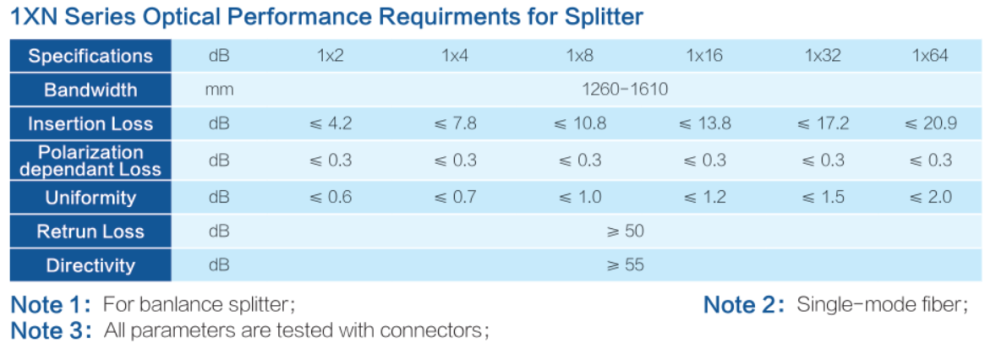

Parameters



Pictures

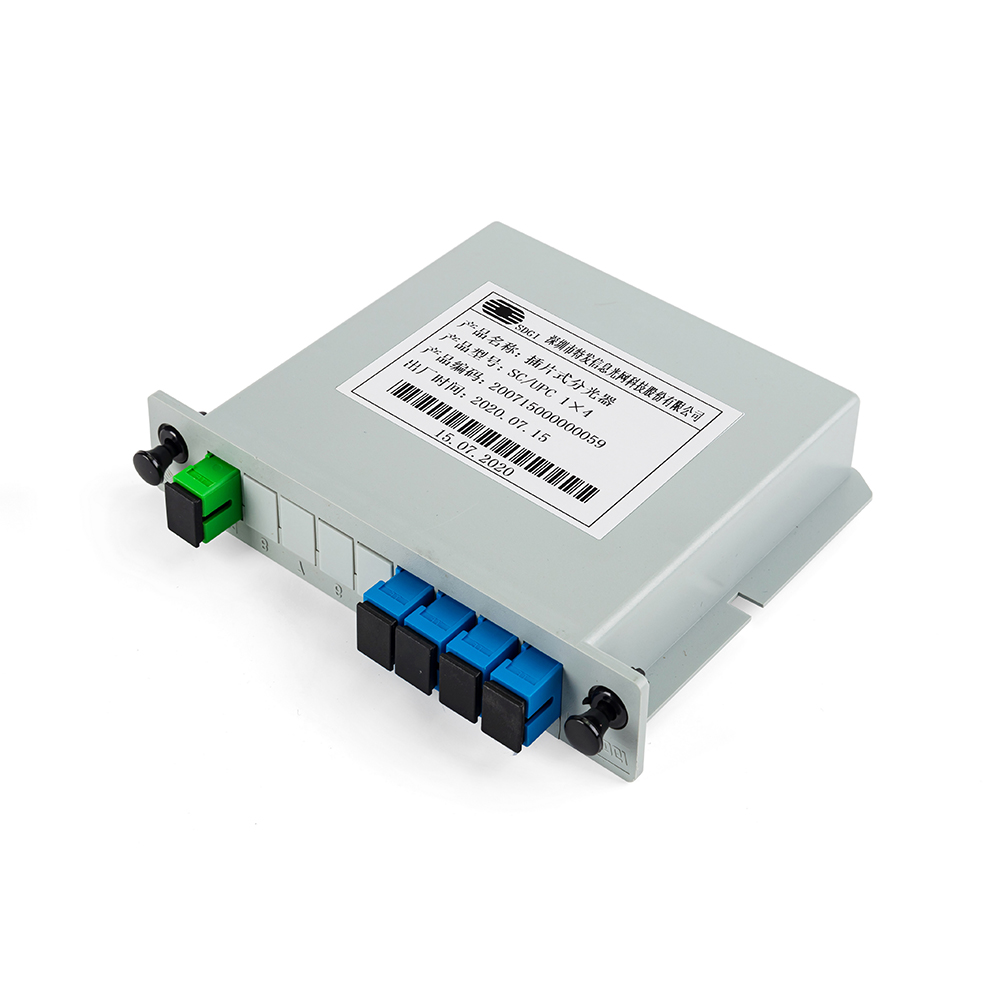

Plug- in cassette Splitter

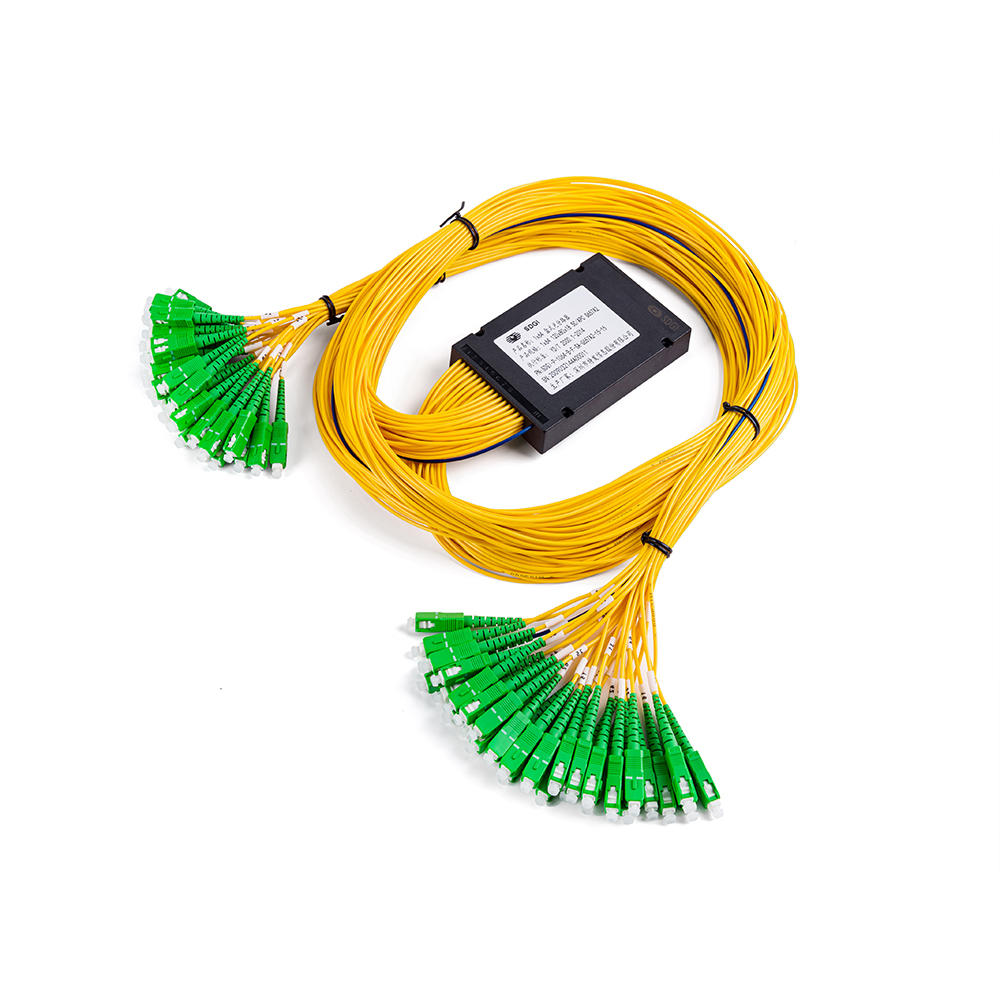

Cassette- module Splitter
