Specification

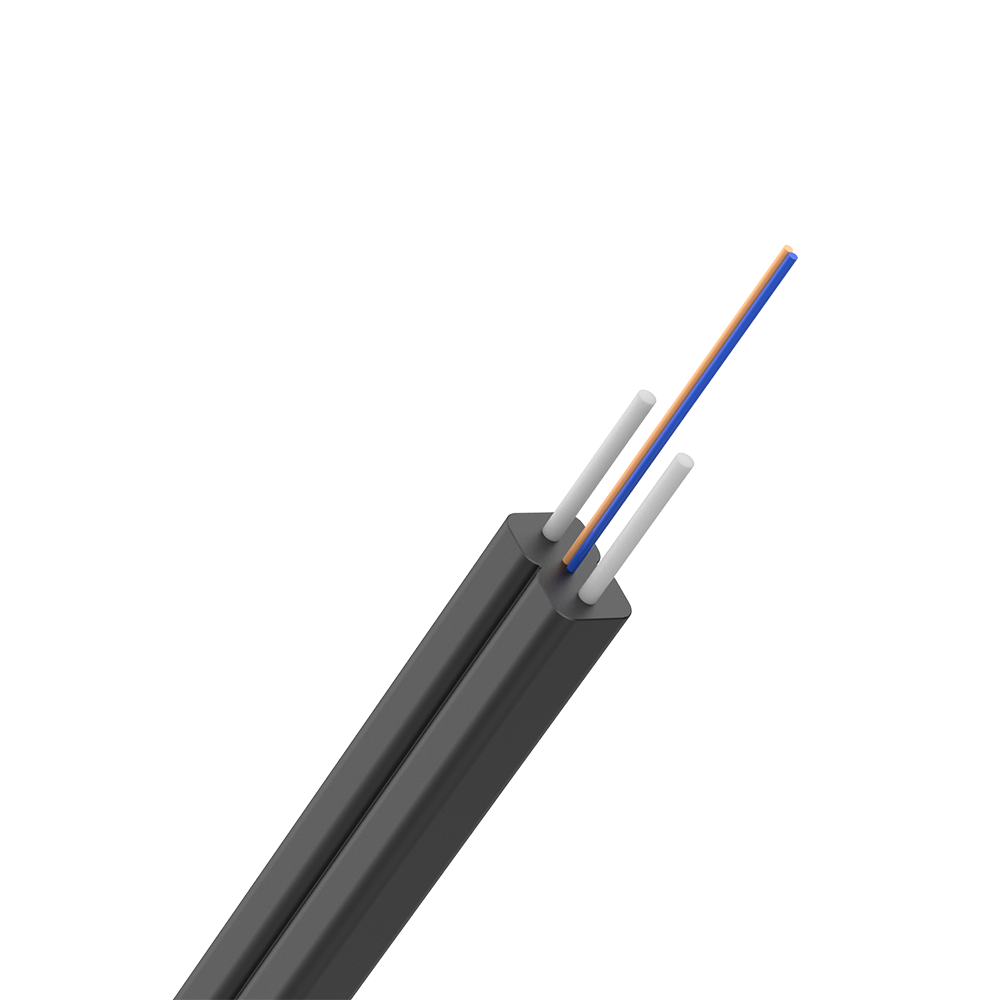

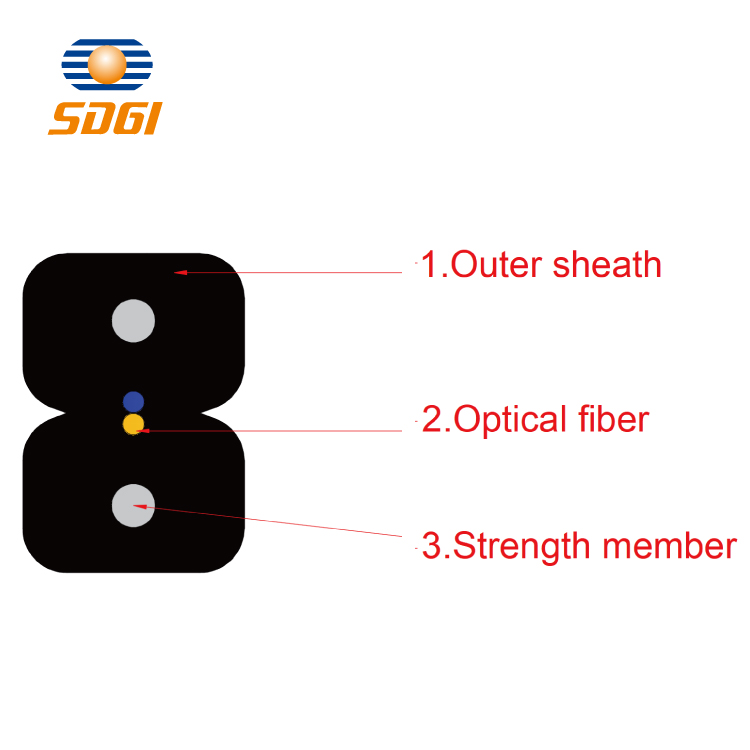

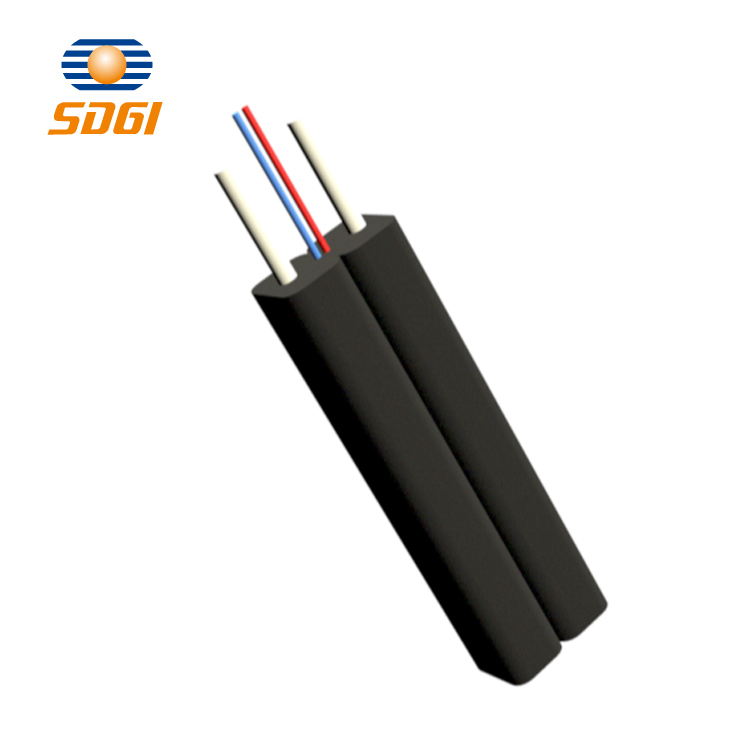

Indoor FTTH drop cable is made by putting the fiber in the center, and two parallel strength members at two sides, and the jacket is made of low smoke zero halogen flame-retardant polyolefin (LSZH).
Product application
• Indoor integrated wiring
• Fiber to the house (FTTH)
Parameters
| Fiber count | Strength member | Cable diameter (mm) | Cable weight (kg/km) | Minimum bendingradius (mm) | Tensile load(N) | Crush load(N/100mm) | Temperature range（℃） | |||
| static | dynamic | Short term | Long term | Short term | Long term | |||||
| 1 | GFRP/KFRP | 2.0*3.0±0.1 | 8.1 | 20 | 40 | 80 | 40 | 1000 | 500 | - 20℃ - +60℃ |
| 2 | GFRP/KFRP | 2.0*3.0±0.1 | 8.3 | 20 | 40 | 80 | 40 | 1000 | 500 | - 20℃ - +60℃ |
| 4 | GFRP/KFRP | 2.0*3.0±0.1 | 8.5 | 20 | 40 | 80 | 40 | 1000 | 500 | - 20℃ - +60℃ |
| 1 | Phosphating steel wire/brass- plated steel wire | 2.0*3.0±0.1 | 11.6 | 20 | 40 | 200 | 100 | 2200 | 1100 | - 20℃ - +60℃ |
| 2 | Phosphating steel wire/brass- plated steel wire | 2.0*3.0±0.1 | 11.8 | 20 | 40 | 200 | 100 | 2200 | 1000 | - 20℃ - +60℃ |
| 4 | Phosphating steel wire/brass- plated steel wire | 2.0*3.0±0.1 | 11.9 | 20 | 40 | 200 | 100 | 2200 | 1000 | - 20℃ - +60℃ |
Pictures
