Optical Fiber Composite Ground Wire OPGW

Optical fiber composite ground wire (OPGW), as an advanced communication mode of power system and with unique advantages, has been widely laid in the old and new Lines in the Power grid.
留言 在线咨询
Details

Specification

Optical fiber composite ground wire (OPGW), as an advanced communication mode of power system and with unique advantages, has been widely laid in the old and new Lines in the Power grid.

Features

◆ It has double functions as ground wire and communication optical cable and eliminates the huge cost of repeat erection.

◆ It is installed on the top of the aerial power line tower, there is no need to consider the best hanging point or electro corrosion.

◆ In the transformation process of the old line, the diameter of the optical cable and pull-weight ratio can match well with another earth wire.

◆ Large transmission capacity, high communication quality, and good reliability.

◆ Excellent mechanical and electrical properties.

◆ Good security property, long service life, and hard to be damaged by gunshot.

Parameters

TYPEFiber coreCarrying   area(mm2Cable   diameter(mm)Cable unit   weight(kg/km)Rated tensile   Strength (kN)20℃ DC   resistance(Ω/km
OPGW-9-40-112、24429.030251.72.03
OPGW-10-50-112、24489.634358.81.8
OPGW-11-70-124、366811.447577.41.3
OPGW-11-70-224、366811.434042.638.8
OPGW-13-90-124、369313.2641114.346.7
OPGW-13-90-224、369313.245758.668.5
OPGW-13-100-1249813.2668120.350.4
OPGW-13-100-2249813.247561.075.0
OPGW-14-110-12411014.0754134.564.2
OPGW-14-110-22411514.3787142.070.0
OPGW-14-110-32411114.146968.2102.9
OPGW-14.6-120-124、3611914.6816147.175.3
OPGW-14.6-120-224、3611914.669796.699.5
OPGW-14.6-120-324、3611914.658074.7112.1
OPGW-15-120-124、36、48、7212115.2832149.377.9
OPGW-15-120-224、36、48、7212115.271197.0101.8
OPGW-15-120-324、36、48、7212115.259175.0115.5
OPGW-17-150-124、36、4815416.61055184.2125.8
OPGW-17-150-224、36、4815416.6901123.7166.2


Pictures

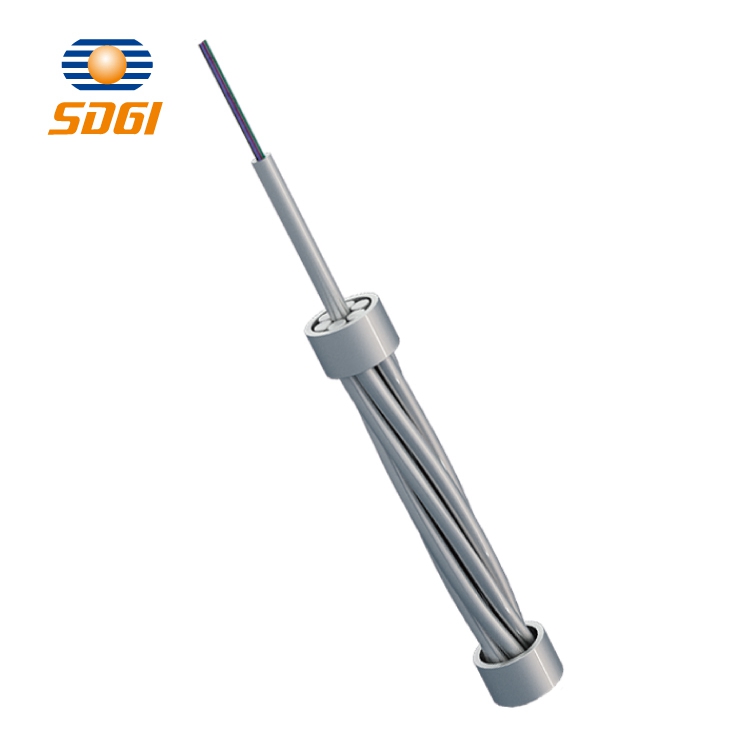

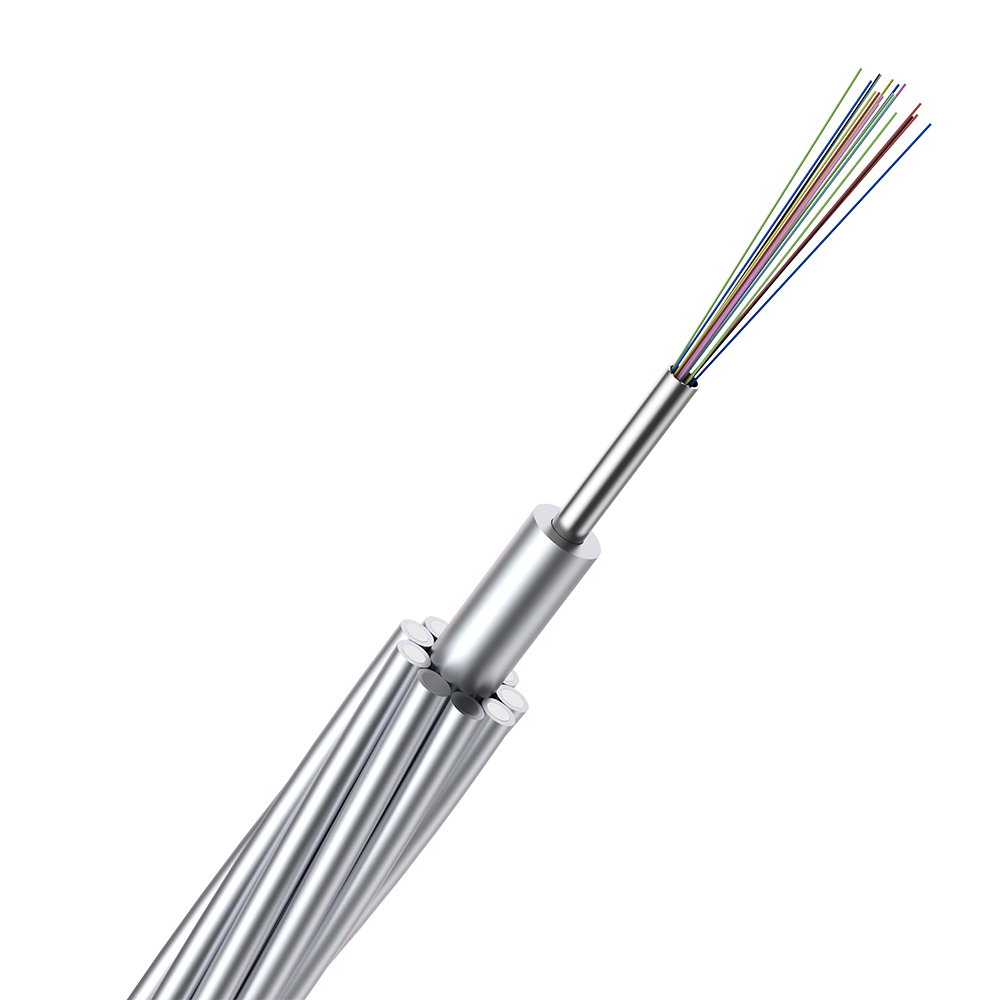

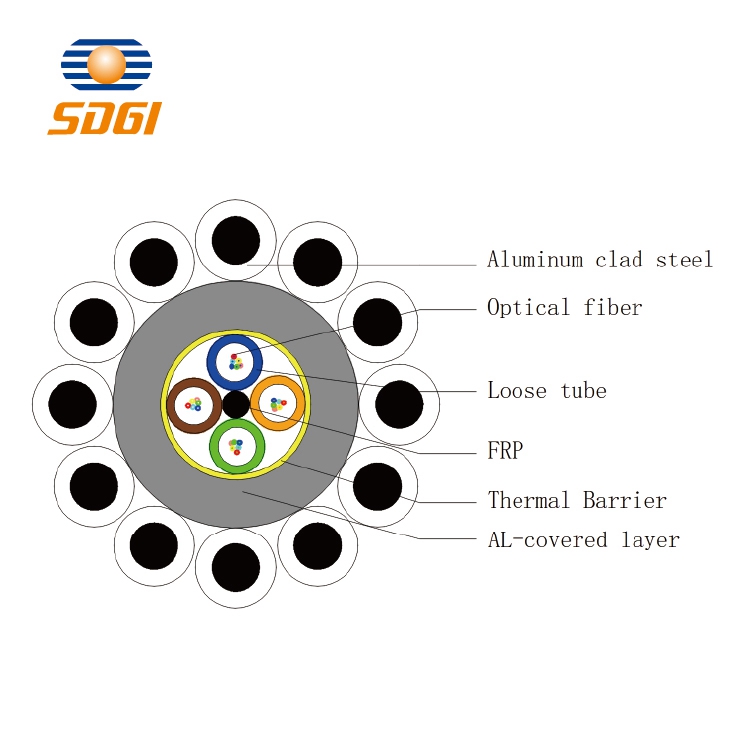

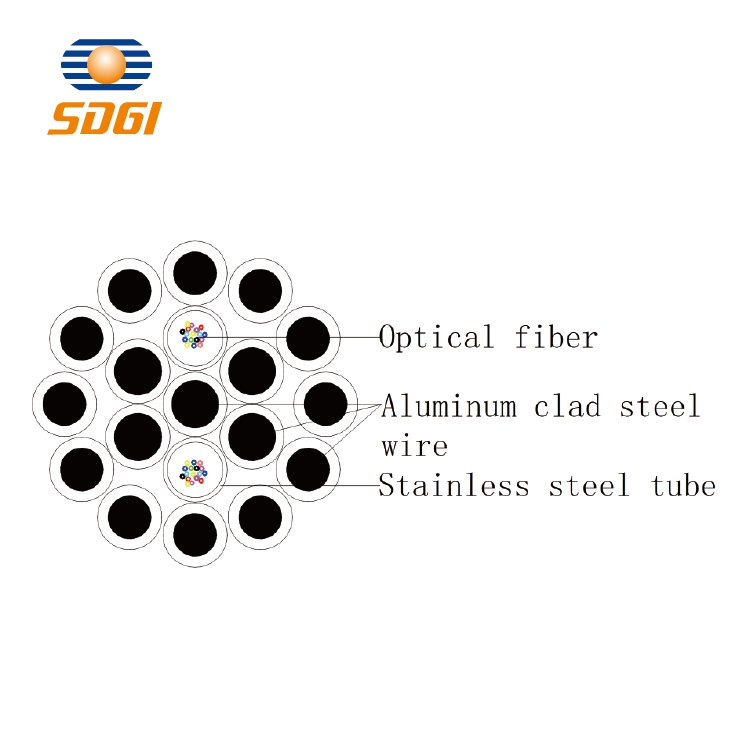

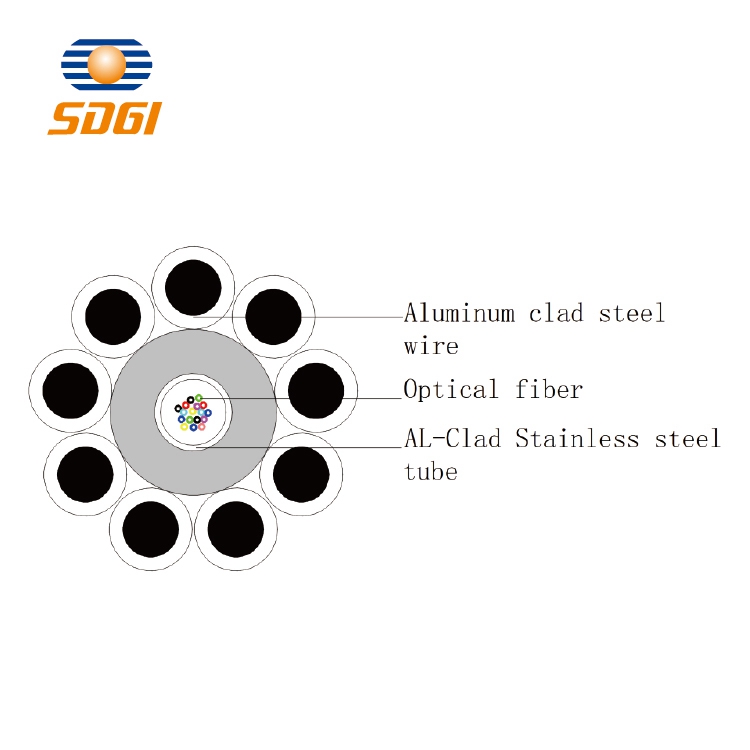

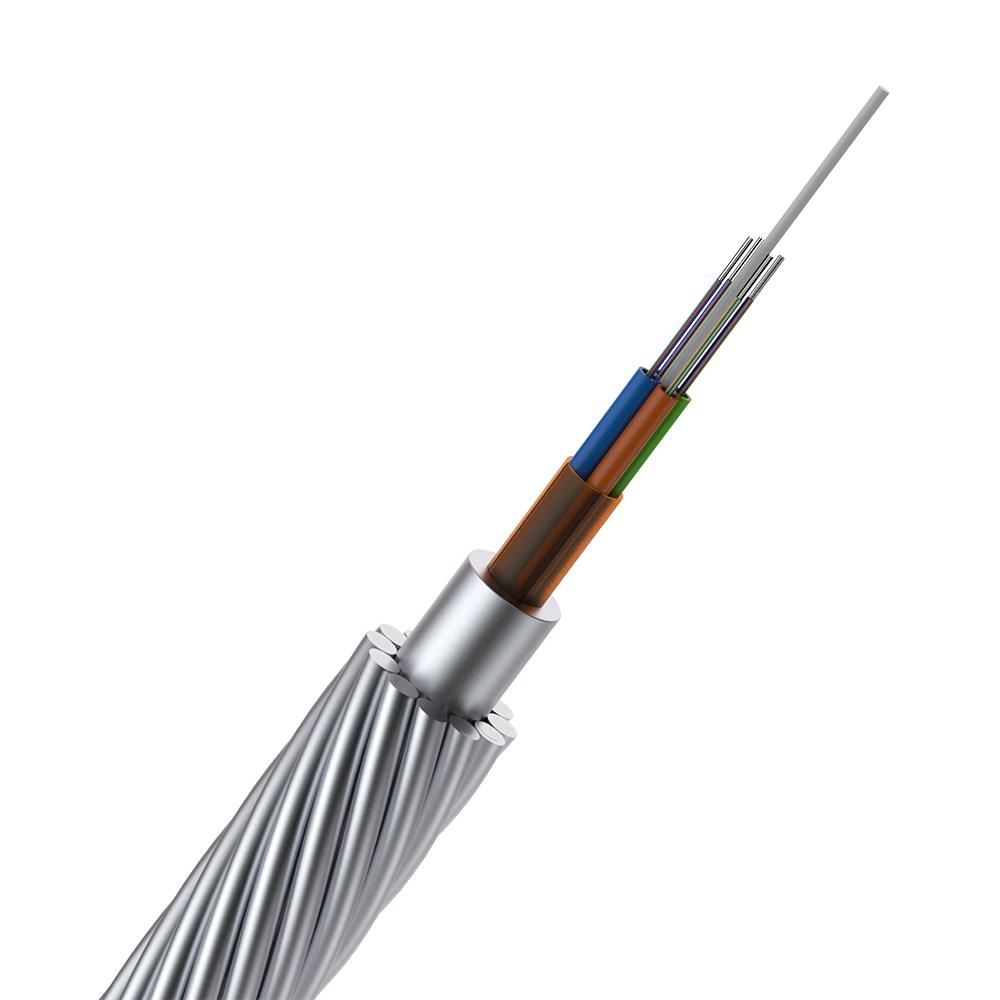

Optical Fiber Composite Ground Wire OPGW
Optical Fiber Composite Ground Wire OPGW
Optical Fiber Composite Ground Wire OPGW
Optical Fiber Composite Ground Wire OPGW
Optical Fiber Composite Ground Wire OPGW
Optical Fiber Composite Ground Wire OPGW
Optical Fiber Composite Ground Wire OPGW
Optical Fiber Composite Ground Wire OPGW
