Specification

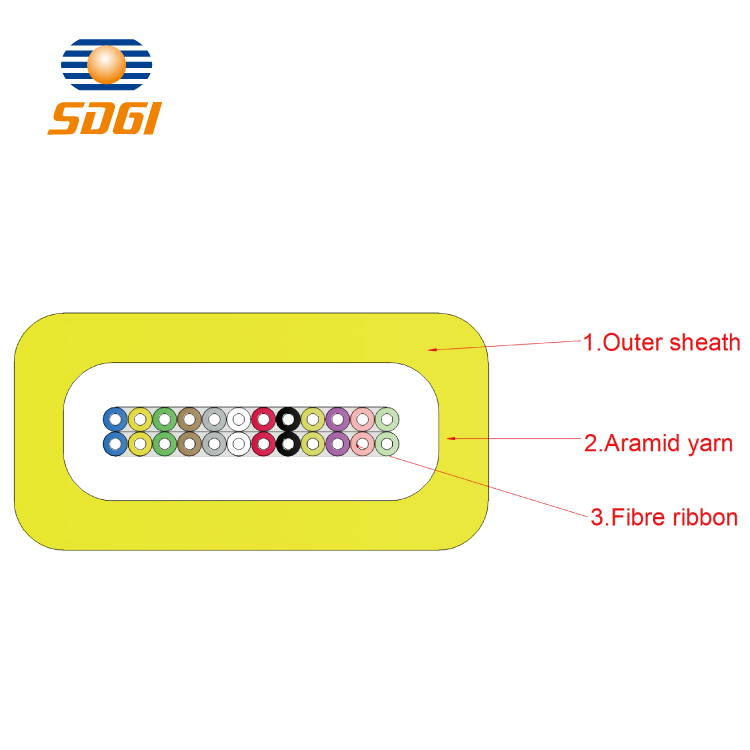

With fiber ribbon as the basic unit, high modulus aramid yarn as the strength member, and the jacket layer is made of polyvinyl chloride (PVC) or low smoke zero halogen flame-retardant polyolefin (LSZH).
Product application
• Indoor wiring
• Interconnection of instrument and communication equipment
•Ribbon fiber patchcord
Parameters
| Fiber count | Strength member | Cable diameter (mm) | Cable weight (kg/km) | Minimum bending radius (mm) | Tensile load (N) | Crush load (N/100mm) | Temperature range（℃） | |||
| static | dynamic | Short term | Long term | Short term | Long term | |||||
| 8 | high modulus aramid yarn | 2.0*4.2±0.2 | 9.4 | 30 | 60 | 200 | 80 | 500 | 200 | - 20℃ - +60℃ |
| 12 | high modulus aramid yarn | 2.3*4.8±0.2 | 11.1 | 30 | 60 | 200 | 80 | 500 | 200 | - 20℃ - +60℃ |
| 24 | high modulus aramid yarn | 2.3*4.8±0.2 | 12.3 | 30 | 60 | 200 | 80 | 500 | 200 | - 20℃ - +60℃ |
Pictures
Ribbon Fiber Optical Cable
