Specification
SDGI optical distribution frame with splice and termination integration modules, wide rack structure, always is used in the line sides of the central office and access Bureau, to make a reliable connection and distribution between the outside cables and optical communication equipment.
Parameters
| Type | Structure size | Fully equipped capacity (core) | |
| H×W×D (mm) | |||
| GPX910-Y1Aa | 2600×840×300(56U) | 864 | |
| GPX910-Y2Aa | 2200×840×300(47U) | 720 | |
| GPX910-Y3Aa | 2000×840×300(42U) | 648 | |
| GPX910-Y1Ba | 2600× 600× 300 | 576 | |
| GPX910-Y2Ba | 2200× 600× 300 | 504 | |
| GPX910-Y3Ba | 2000× 600× 300 | 360 | |
| GPX910-Z1Aa | 2600×840×300(56U) | 1008 | |
| GPX910-Z2Aa | 2200×840×300(47U) | 792 | |
| GPX910-Z3Aa | 2000×840×300(42U) | 720 | |
| GPX910-Z1Ba | 2600×600×300 | 360 | |
| GPX910-Z2Ba | 2200×600×300 | 288 | |
| GPX910-Z3Ba | 2000×600×300 | 216 | |
| GPX910-M1Aa | 2600×720×800 | 864/672 | |
| GPX910-M2Aa | 2200×720×800 | 720/576 | |
| GPX910-M3Aa | 2000×720×800 | 648/480 | |
| GPX910-M1Ba | 2600×720×600 | 864/672 | |
| GPX910-M2Ba | 2200×720×600 | 720/576 | |
| GPX910-M3Ba | 2000×720×600 | 648/480 | |

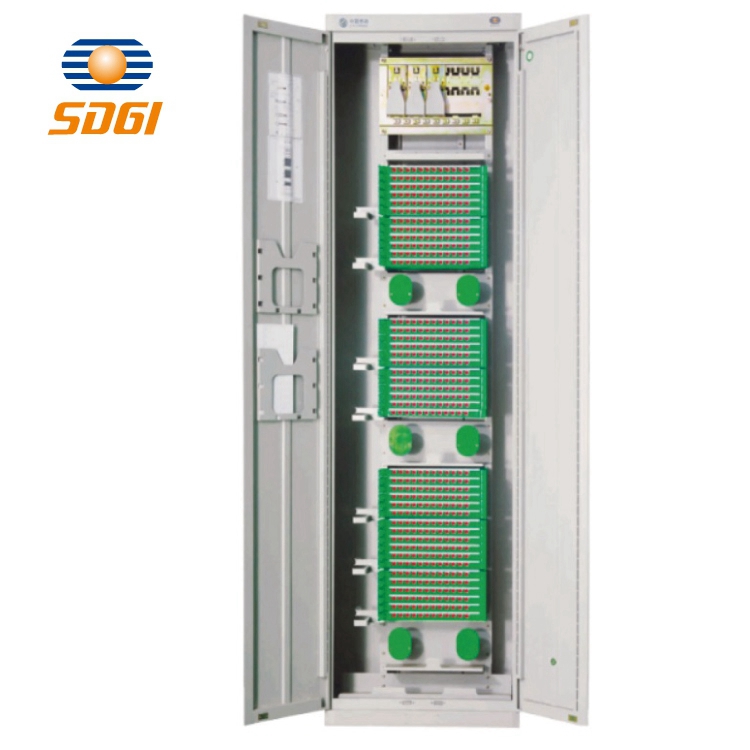

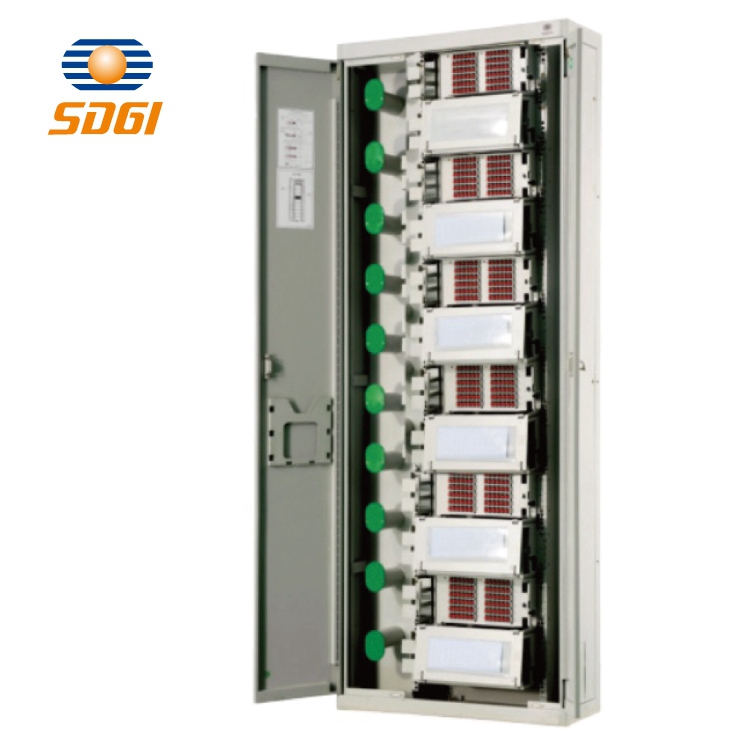

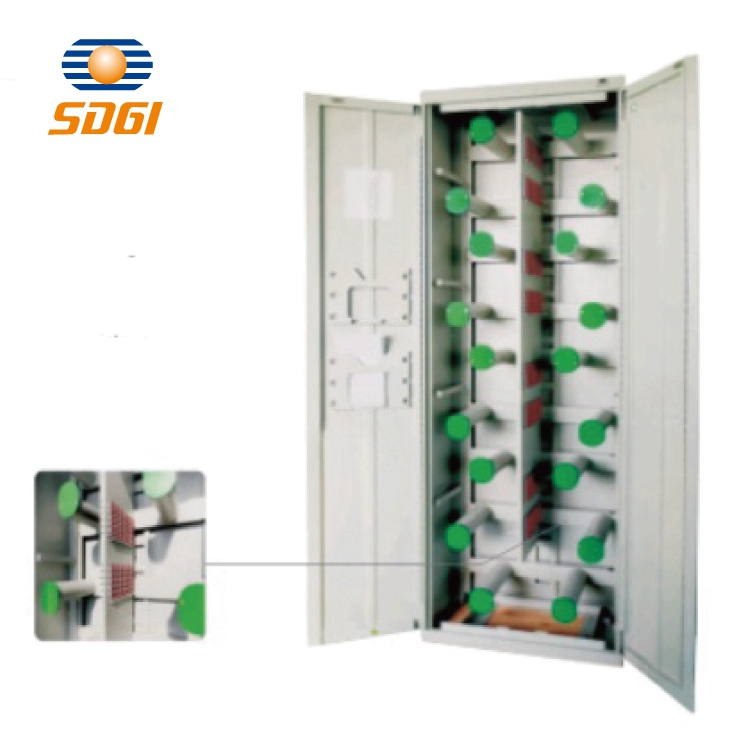

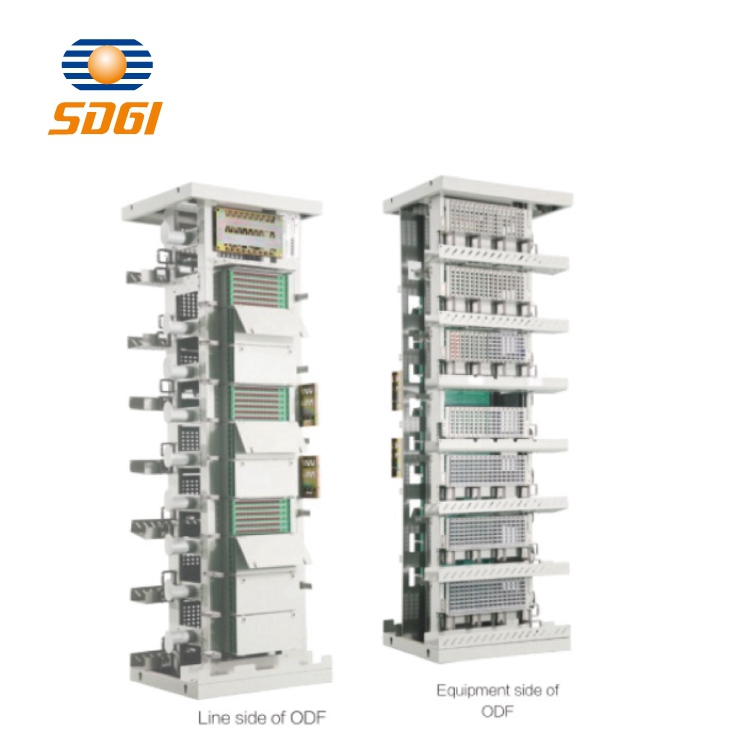

Pictures
