Optic Fiber Distribution Box

A fiber optic distribution box is used to connect trunk cable and distribution cable for indoor and outdoor purposes. Fulfill the introduction and fixing of fiber cable, fiber splicing, distribution, installation and distribution of optical splitter, storage and splicing of drop cable, etc., Each performance meets or exceeds the requirement of YD/T 2150- 2010 standard.
留言 在线咨询
Details

Specification

A fiber optic distribution box is used to connect trunk cable and distribution cable for indoor and outdoor purposes. Fulfill the introduction and fixing of fiber cable, fiber splicing, distribution, installation and distribution of optical splitter, storage and splicing of drop cable, etc., Each performance meets or exceeds the requirement of YD/T 2150- 2010 standard.

Parameters

TypeMaterial Structure size Maximum capacity
H×W×D (mm)
GPX910-FJN-12BaMetal 400×360×8012core
GPX910-FJN-24Ba400×360×8024core
GPX910-FJN-36Ba340×360×12136core
GPX910-FJN-48Ba400×360×12148core
GPX910-FJN-72Ba460×360×12172core
GPX910-FJN-12BaNon-metal 390×380×8112core
GPX910-FJN-24Ba390×380×10524core
GPX910-FJN-36Ba400×380×12036core
GPX910-FJN-48Ba420×340×12148core
GPX910-FJN-72Ba480×450×15572core
GPX910-FJN-144Ba600×480×175144core

Pictures

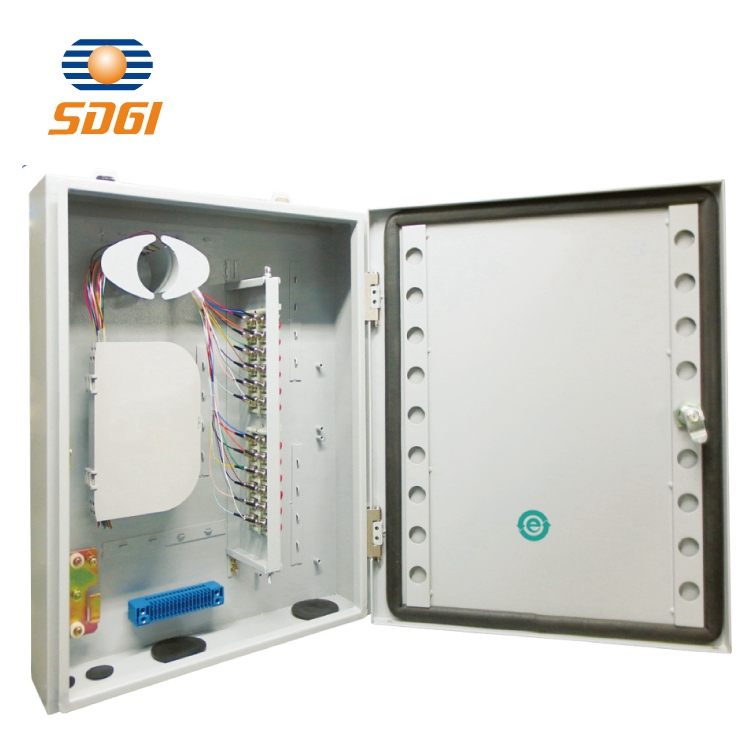

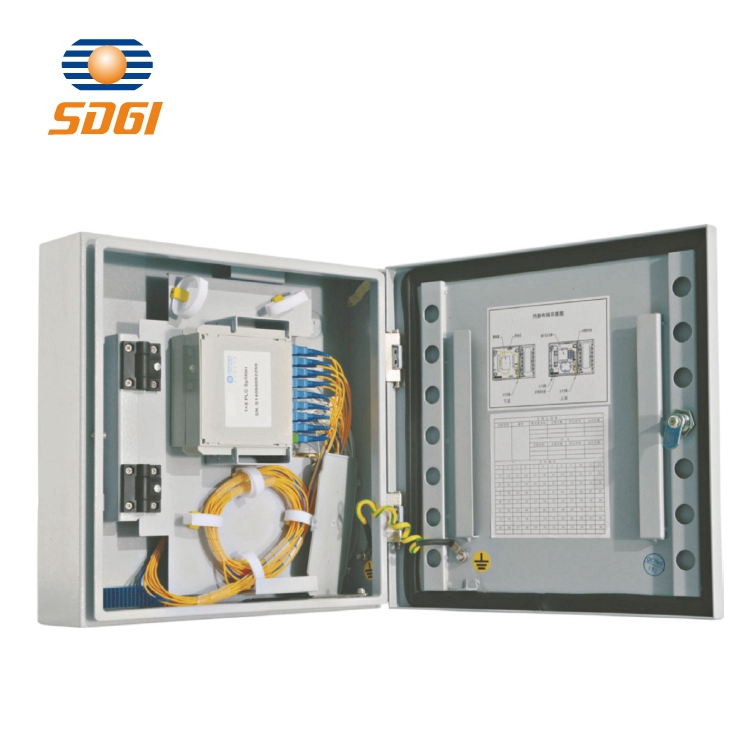

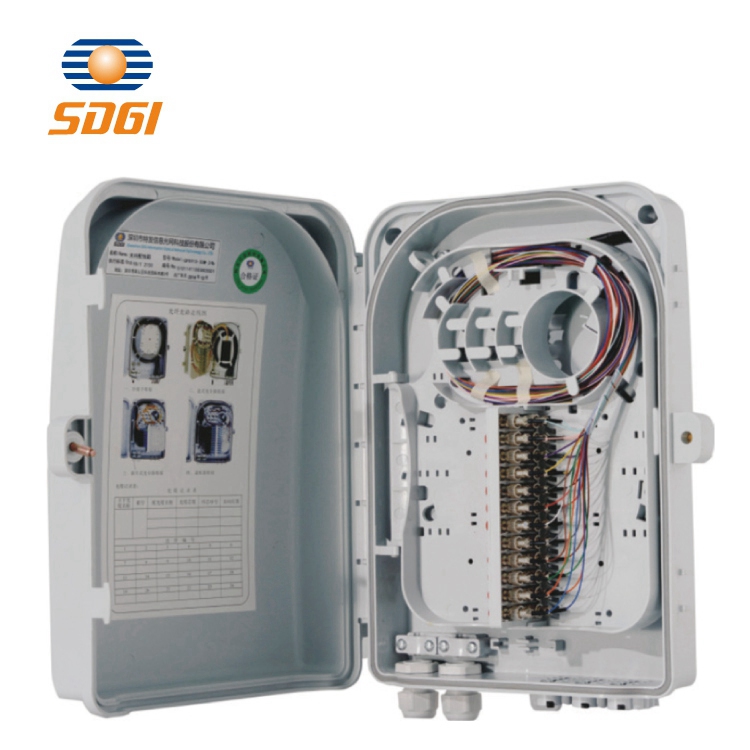

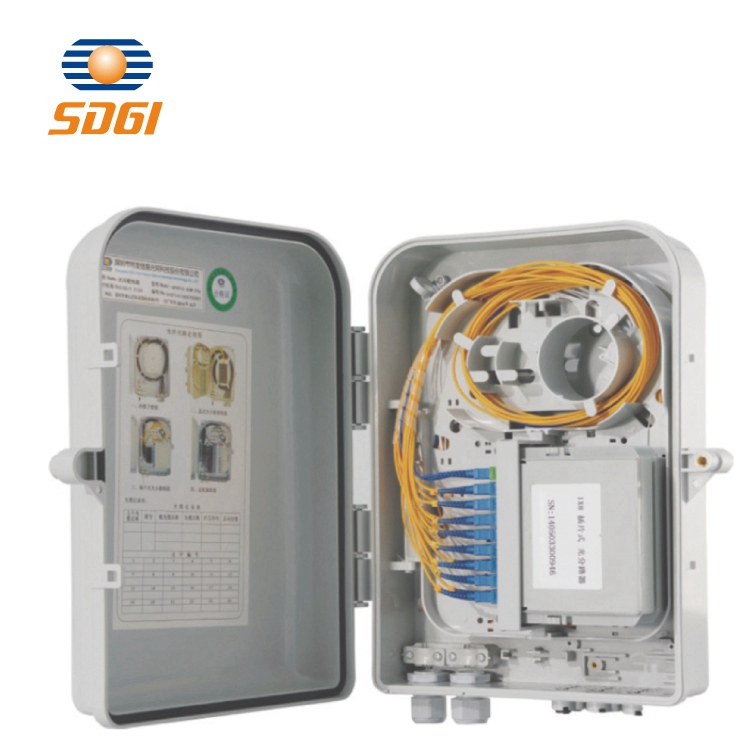

 Optic Fiber Distribution Box
Optic Fiber Distribution Box
 Optic Fiber Distribution Box
Optic Fiber Distribution Box
 Optic Fiber Distribution Box
Optic Fiber Distribution Box
 Optic Fiber Distribution Box
Optic Fiber Distribution Box
