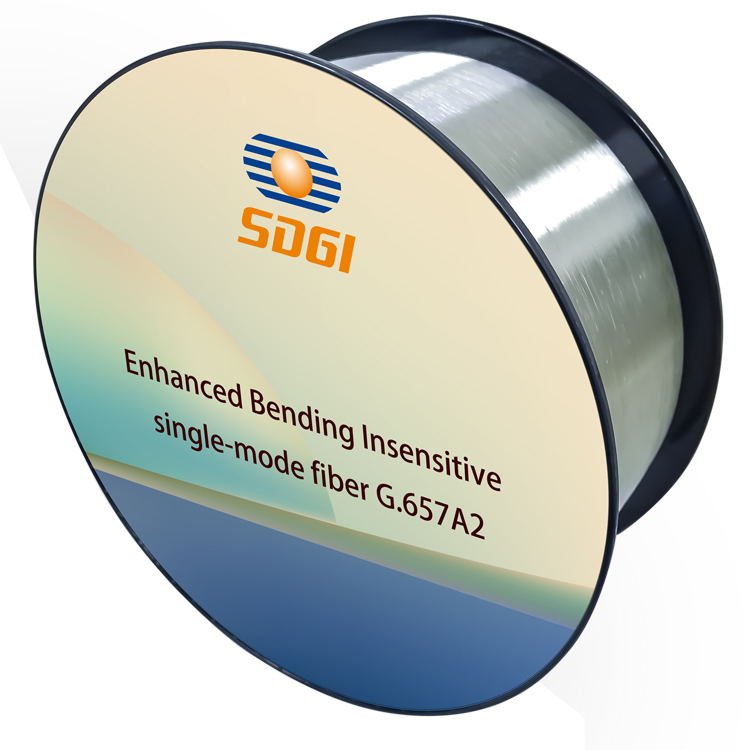

200μm Enhanced Bending Insensitive Non-dispersion shifted single-mode fiber G.657A2

"SDGl bending insensitive fiber has all the properties of enhanced single mode fiber, is fully compatible with the G.652D fiber, and has excellent anti-bending performance, especially at the wavelength region of 1600nm. The feature of bend insensitivity of the fiber enables it to fully support the application at wavelength of O-E-S-C-L-wave (1260-1625 nm)without extra carefulness during installation, thus reducing installation and rework costs.
留言 在线咨询
Details

Specification

"SDGl bending insensitive fiber has all the properties of enhanced single mode fiber, is fully compatible with the G.652D fiber, and has excellent anti-bending performance, especially at the wavelength region of 1600nm. The feature of bend insensitivity of the fiber enables it to fully support the application at wavelength of O-E-S-C-L-wave (1260-1625 nm)without extra carefulness during installation, thus reducing installation and rework costs.

The bending insensitive fiber is suitable for cable of all structures, such as: loose tube type, fight tube type, ribbon type and center tube type. It can broadly support long-haul networks, metropolitan area networks, especially all the telecommunications, cable TV and other applications in FTTH. The bending insensitive fiber can support smaller cable bending radius and smaller optical distribution boxes, fiber plug-in components.

The long wavelength window transmission in the L band brings higher requirements and challenges to the macro bending loss of the optical fiber, while SDGl bending insensitive optical fiber can fully meet and exceed the requirements.

SDGl uses advanced plasma vapor deposition method (APVD) to produce optical fiber products, which can ensure high quality and high purity of all optical fibers. Meanwhile, APVD is a best process of realizing a sagging structure at the cladding layer of fiber which is requisite for an excellent bending insensitivity. In addition, all SDGl optical fiber products adopt unique double UV curing acrylic coating process, which improves the reliability and durability of the fiber to ensure a best performance even in the harsh environment.

The performance of the SDGl single-mode fiber meets and exceeds the optical fiber specifications such as TU-T G.652D/G.657A1/G.657A2, IEC60793-2-50B.1.3/B6a1/B6a2 and so on. To provide customers more convenience, SDGl has made more strict internal standards for all indexes of optical fiber products.

Product Features

◆ Excellent bending insensitivity with bending radius of 7.5-15 mm, including at wave length of L-band.

◆ The lower polarization mode dispersion coefficient (PMD): link design value.

◆ lmproved geometric characteristics.

◆ Adopt advanced plasma vapor deposition method (APVD) patented technology.

Performance Advantage

◆ Fully support application at wavelength of L-band, and no extra carefulness needed when winding fibers.

◆ More compact distribution devices can be used to save space greatly in the FTTH system.

◆ The distance of polarization mode dispersion is extended, and the relay cost is reduced.

◆ Lower splicing loss and higher splicing efficiency. Higher purity, better geometry and uniformity.
