Stranded Loose Tube Steel Wire Armored Optical Fiber Cable GYTA33 (2-144cores)

Installation: Underwater, direct- burial, climbing.

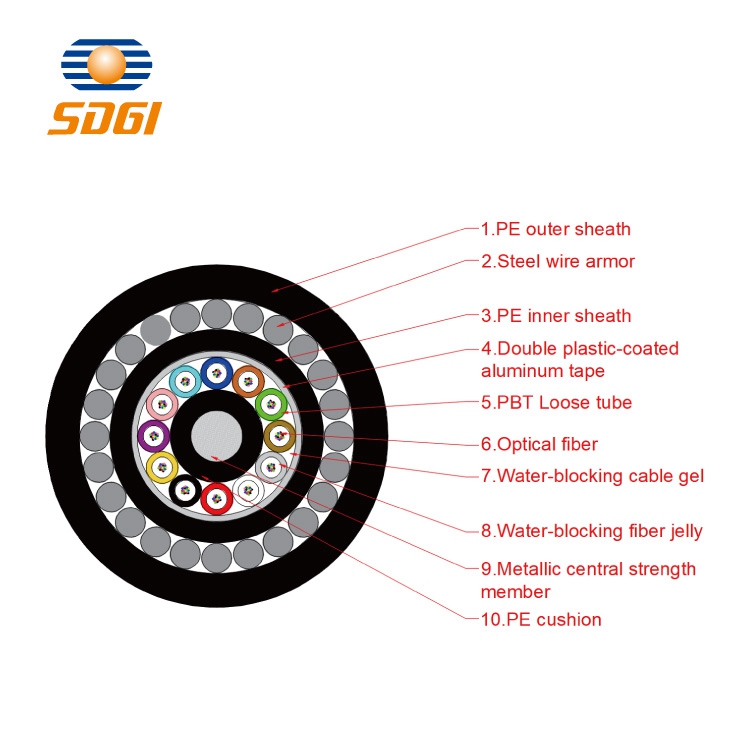

Structural features: Non- metallic (FRP)/ Metallic (phosphate steel wire) central strength member, double plastic-coated aluminum tape- PE laminated inner sheath, steel wire armor- PE laminated outer sheath.
留言 在线咨询
Details

Specification

Installation: Underwater, direct- burial, climbing.

Structural features: Non- metallic (FRP)/ Metallic (phosphate steel wire) central strength member, double plastic-coated aluminum tape- PE laminated inner sheath, steel wire armor- PE laminated outer sheath.

Performance characteristics:Optical fiber cable has excellent water-resistant performance with double plastic-coated aluminum tape- PE laminated inner sheath, steel wire armor significantly improved the performance of tensile resistance, crush resistance, and impact resistance.

Application: Long-haul communication, interoffice communication, especially suitable for harsh environments like climbing slops, crossing rivers, and so on.

Parameters

Fiber countCable O.D(mm)Cable weight(kg/km)Minimum bending radiusTension allowed(N)Crush resistance
StaticDynamicShort termLong termShort termLong term
2- 3014.138512.5times O.D25times O.D200001000050003000
32- 3614.4414
38- 6014.5415
62- 7215.0443
74- 9616.1506
98- 12018.1664
122- 14419.3739

Pictures

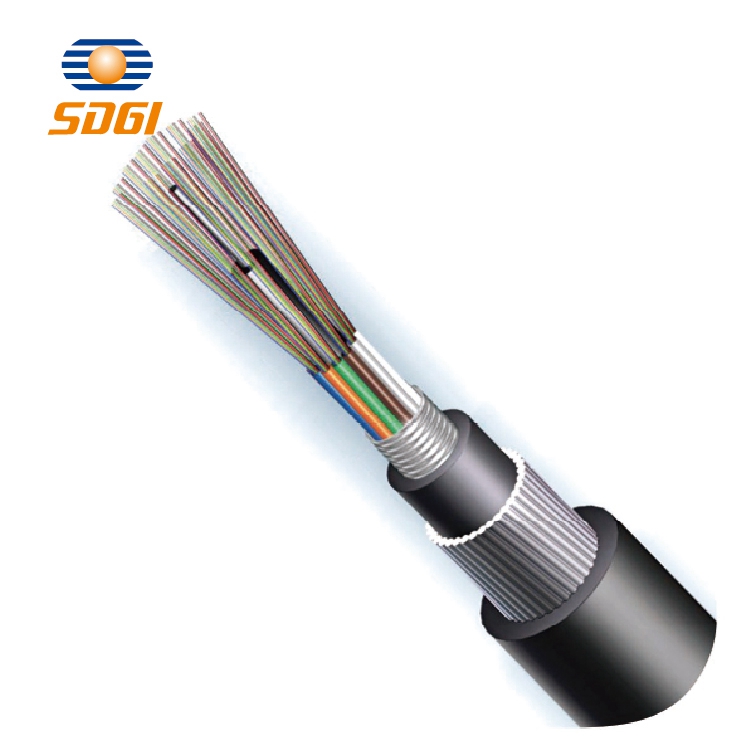

Stranded Loose Tube Steel Wire Armored Optical Fiber Cable  GYTA33 (2-44cores)
Stranded Loose Tube Steel Wire Armored Optical Fiber Cable  GYTA33 (2-44cores)
Stranded Loose Tube Steel Wire Armored Optical Fiber Cable  GYTA33 (2-44cores)
Stranded Loose Tube Steel Wire Armored Optical Fiber Cable  GYTA33 (2-44cores)
