Composite Core Soft Aluminum Stranded Wire

The composite core soft aluminum strand is a composite material whose center is drawn by carbon fiber, glass fiber, and thermosetting resin, and the core member plays a load-bearing role. The effective operating temperature of traditional steel-cored aluminum stranded wire does not exceed 100℃, while the strength is increased by less than 2 times. It sags by 1/2 under high temperature, and the weight per unit length is 10-20% lighter, which avoids galvanic corrosion between different metals.
留言 在线咨询
Details

Specification

The composite core soft aluminum strand is a composite material whose center is drawn by carbon fiber, glass fiber, and thermosetting resin, and the core member plays a load-bearing role. The effective operating temperature of traditional steel-cored aluminum stranded wire does not exceed 100℃, while the strength is increased by less than 2 times. It sags by 1/2 under high temperature, and the weight per unit length is 10-20% lighter, which avoids galvanic corrosion between different metals.

Parameters

Nominal sectional area(mm2)Composite core dia.(mm)Cable Diameter(mm)Stranded wire structure Calculate areaUnit weight(kg/km)F1A/F1BF2A/F2B20℃ DC resistance(Ω/km)
Number of layersNumber of aluminum wires Aluminum area(mm2)Composite core area(mm2)TotalRated tensile strength(kN)
150/20515.321515019.6169.6452.849.8755.760.1861
185/255.516.921618523.8208.8557.660.5567.680.1509
185/30617.121618528.3213.3566.670.0378.510.1509
240/30619.221624028.3268.3718.273.2081.680.1163
240/40719.521624038.5278.5738.794.64106.190.1163
300/30621.221630028.3328.3883.776.6685.140.0931
300/356.521.421630033.2333.2893.586.9696.920.0931
300/40721.521630038.5338.5904.198.1109.60.0931
300/50821.921630050.3350.3927.6122.8137.90.0931
400/356.524.421940033.2433.21169.292.72102.70.0698
400/40724.521940038.5438.51179.8103.9115.40.0698
400/457.524.721940044.2444.21191.2115.8129.10.0698
400/50824.921940050.3450.31203.4128.6143.70.0698

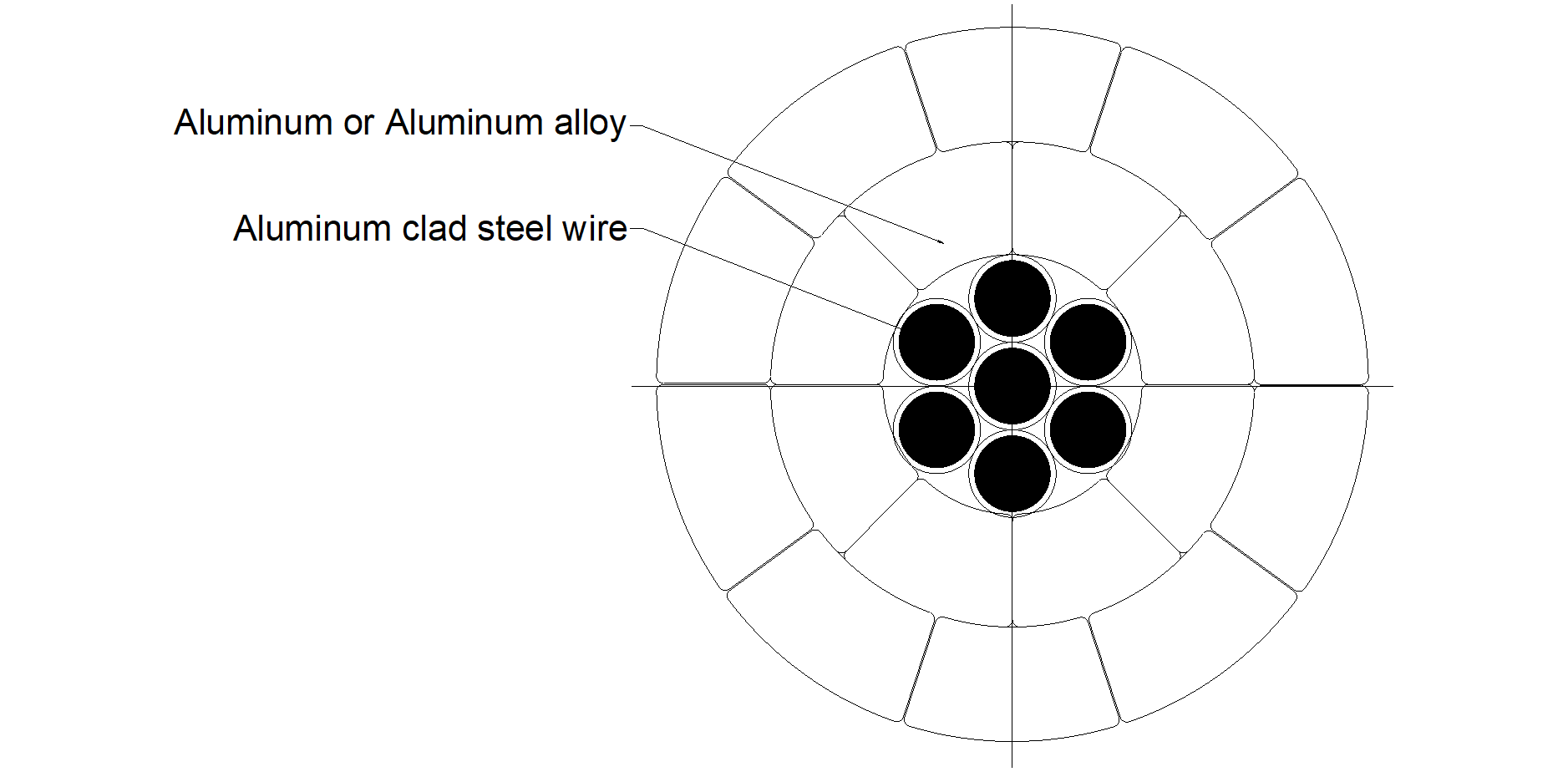

Pictures

Composite Core Soft Aluminum Stranded Wire
