Stranded Loose Tube Optical Fiber Cable GYTS (2-576 cores)

Structural

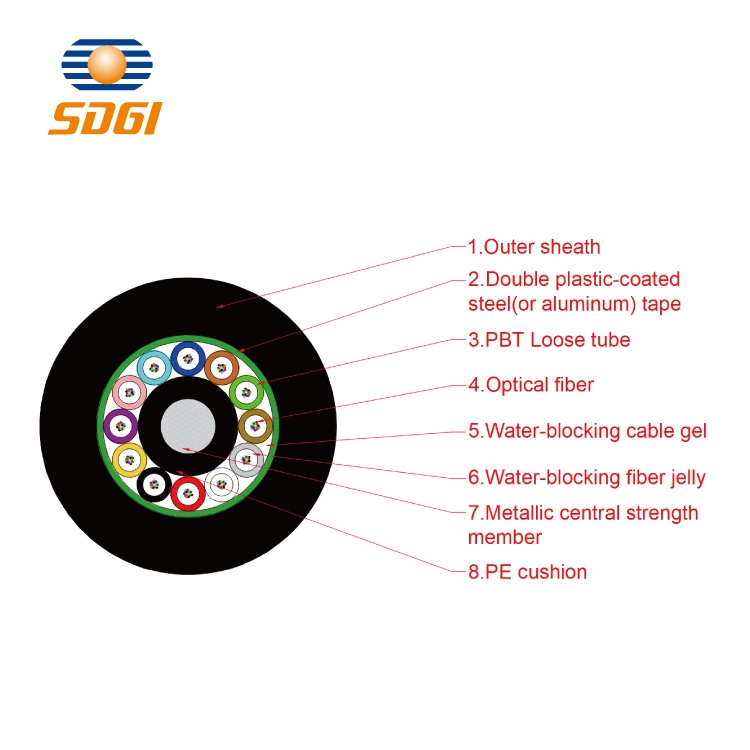

features: Non- metallic (FRP)/ Metallic (phosphate steel wire) central strength member, double plastic-coated corrugated steel tape- PE laminated outer sheath.

Performance

characteristics: stranded loose tube optical fiber cable has excellent crush resistance with steel tape armor, sound bullet-proof performance.

Application: Long-haul communication, interoffice communication, especially suitable for application with high requirement of crush resistance like aerial installation.
留言 在线咨询
Details

Specification

Structural

features: Non- metallic (FRP)/ Metallic (phosphate steel wire) central strength member, double plastic-coated corrugated steel tape- PE laminated outer sheath.

Performance

characteristics: stranded loose tube optical fiber cable has excellent crush resistance with steel tape armor, sound bullet-proof performance.

Application: Long-haul communication, interoffice communication, especially suitable for application with high requirement of crush resistance like aerial installation.

Parameters

Fiber countCable O.D(mm)Cable weight(kg/km)Minimum bending radiusTension allowed(N)Crush resistance
StaticDynamicShort termLong termShort termLong term
2- 308.88310times O.D20 times O.D15006001000300
32- 369.197
38- 609.298
62- 729.7113
74- 9610.9130
98- 12012.2155
122- 14413.4186
146- 21613.9200
218- 24015.6250
242- 28815.6252
290- 43216.3274
57618.6377

Pictures

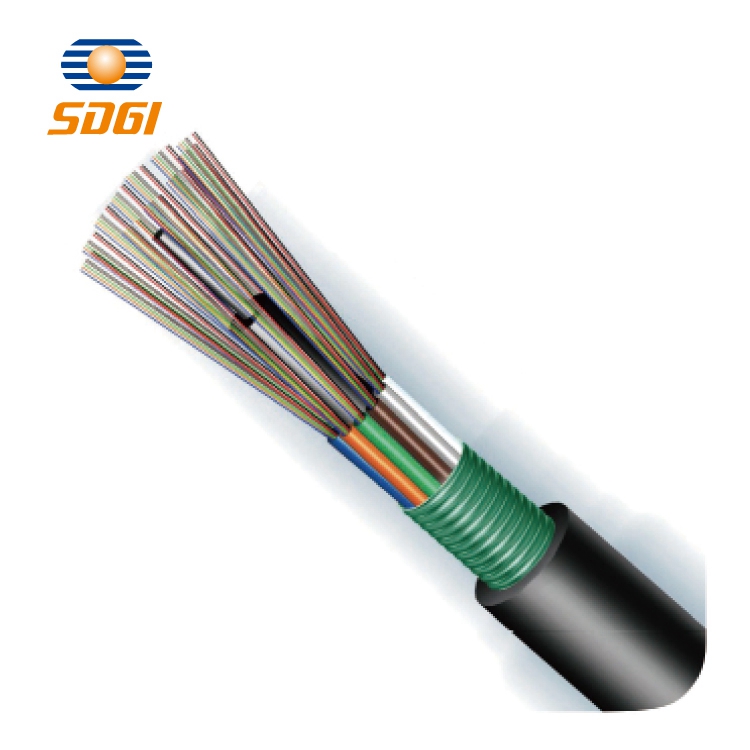

Stranded Loose Tube Optical Fiber Cable  GYTS (2-576 cores)
Stranded Loose Tube Optical Fiber Cable  GYTS (2-576 cores)
Stranded Loose Tube Optical Fiber Cable  GYTS (2-576 cores)
Stranded Loose Tube Optical Fiber Cable  GYTS (2-576 cores)
