Metal Figure-8 Wedge Anchor Clamp Tension Clamp

Wedge Anchoring Clamp is self-adjusting ,designed to anchor optical fiber cable transmission lines. Wide range of gripping capacities and mechanical resistance achieved by wide product range and different models of ADSS anchor clamp.
留言 在线咨询
Details

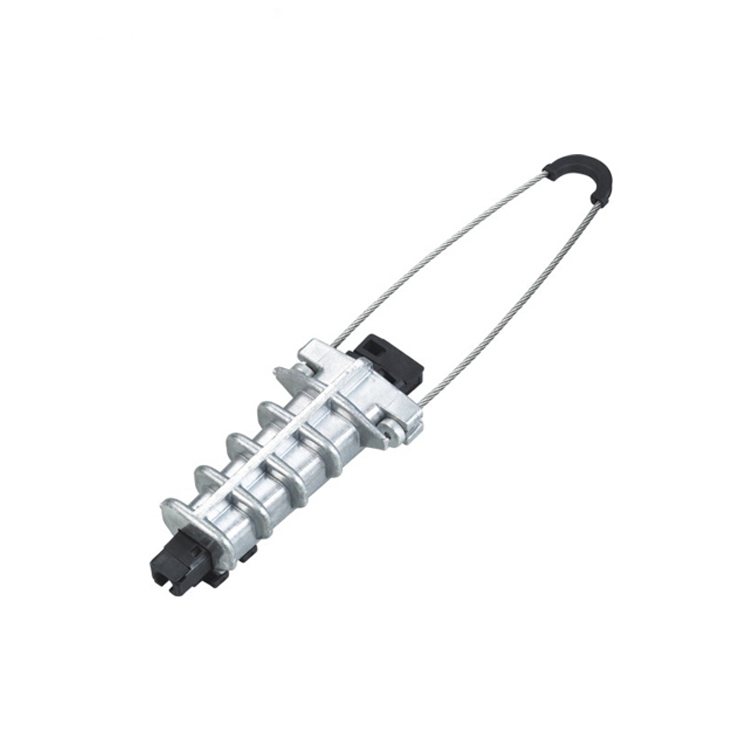

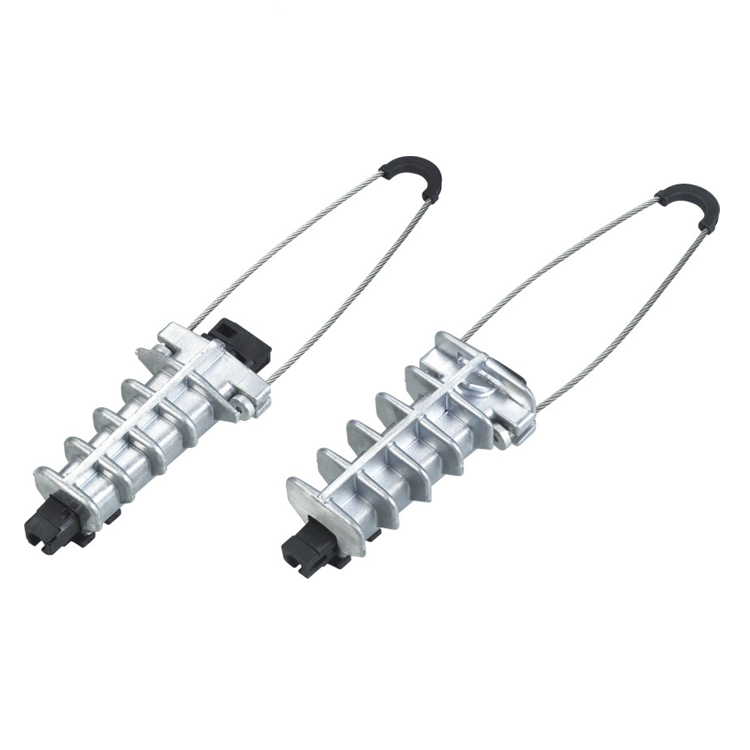

Wedge Anchoring Clamp for Figure-8 Cables
Wedge Anchoring Clamp is self-adjusting ,designed to anchor optical fiber cable transmission lines. Wide range of gripping capacities and mechanical resistance achieved by wide product range and different models of ADSS anchor clamp.

Features

1.The stainless steel bail allows installations of clamps on a pole brackets or hooks.

2.Cable clamp self-adjusting installations.

3.Tool free cable clamp installations.

4.Long life period materials :stainless steel bail ,fiberglass rainforced plastic.

5.The clamp consists of self-adjusting plastic wedges,which clamp the optical cable without damaging.


Product Specification

TypeMBL(Kn)Cable SizeWeight(kg)
TF-083<7mm0.13kg


*Our products are not all covered in the table. Please contact us for more information.

Similar Product

TypeMBL(Kn)Cable SizeWeight(kg)
TF-052.3<5mm0.08kg
TF-063≤6mm0.12kg
TF-075≤7mm0.16kg
TF-3733-7mm0.15kg
TF-6936-9mm0.15kg
TF-07-5205.5≤7mm0.19kg
TF-10-5008≤10mm0.34kg
